Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
sandblast, acid etching
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Platform to Abutment Connection: Internal Morse Taper and Internal Hexagon. Morse Taper Opening- 2.5mm diameter. Taper- 11.25 degrees (22 degrees). Hexagon width- 2.1mm.

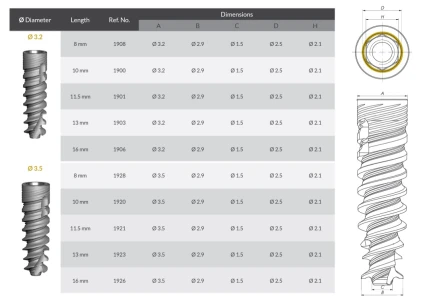

Sizes:

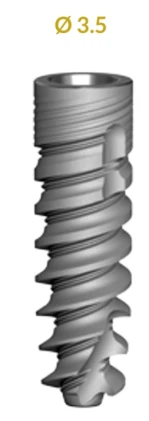

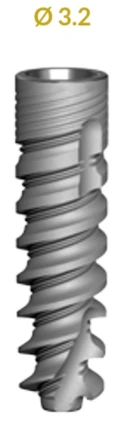

Implant Diameter: 3.2mm, 3.5mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
