Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface

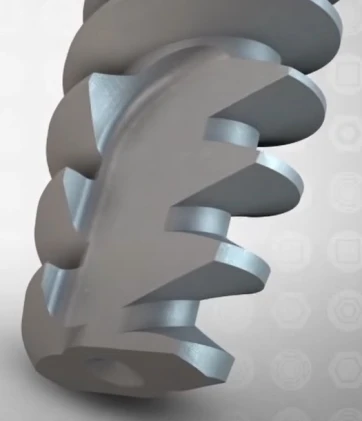

Implant Apical Shape
flat apex
Implant Apical Features
apical hole, grooved
Implant Body Surface
sandblast, acid etching
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)

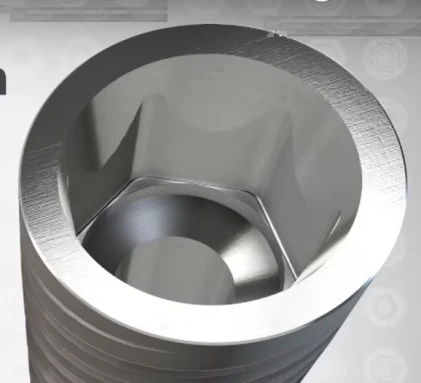

Platform to Abutment Connection: Internal Morse Taper and Internal Hexagon. Morse Taper Opening- 2.5mm diameter. Taper- 11.25 degrees (22 degrees). Hexagon width- 2.1mm.

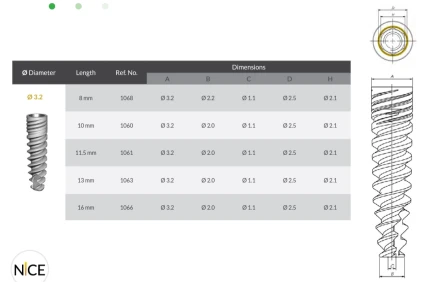

Sizes:
Implant Diameter: 3.2mm.

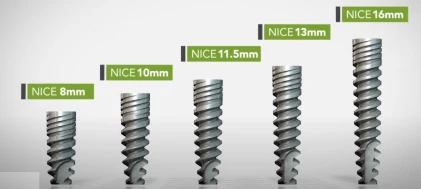

Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
