Abutment Connection
internal
Abutment Connection Type
internal hex, internal morse taper

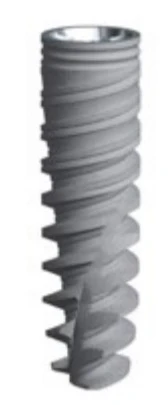

Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
TPO (Titanium Porous Oxide) anodic oxidation
Implant Material
commercially pure titanium (grade 4)
Implant Apical Features: grooves (2).

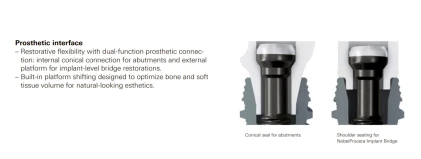

Implant to Abutment Connection: Morse Taper+Anti Rotation Internal Hexagon. Abutment Interface Diameter:3.0mm.
Implant Cervical Features: Collar Grooves.

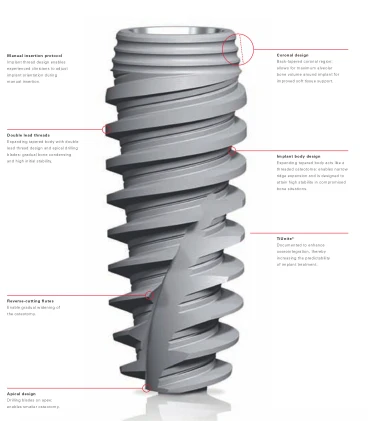

Implant Body Thread: Double Thread.

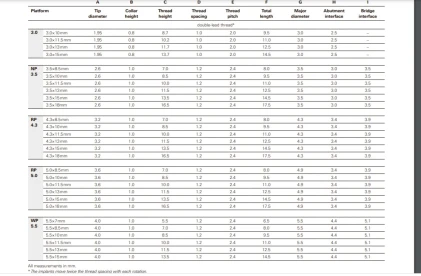

Sizes:Platform Diameter:3.5mm, Implant Diameter:3.5mm.
Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm,18.0mm.
