Abutment Connection
internal
Abutment Connection Type
internal hex, internal morse taper
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Implant to Abutment Connection: Morse Taper 24 deg. Anti Rotation Internal Hexagon. Abutment Interface Diameter:3.0mm.
Platform Diameter: 3.5mm.

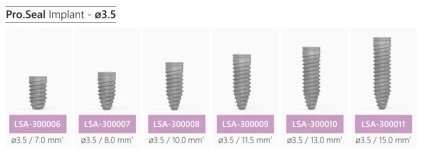

Sizes:
Implant Diameter: 3.5mm.
Implant Length:7.0mm,8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.
