Abutment Connection
internal
Abutment Connection Type
internal dodecagon, internal morse taper, internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
TiO2 blast+fluoride hydroflouric acid
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: non polished, micro-thread.
Platform to Abutment Connection: Morse Taper 11 dag. Taper Diameter 2.8mm. Internal Double Hexagon.
aqua (small). Internal Thread-M1.6

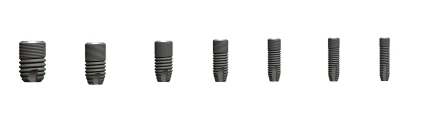

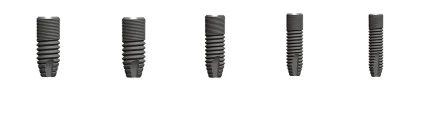

Sizes: Implant Diameter 3.5mm.
Implant Length: 8.0mm,9.0mm,11.0mm,13.0mm,15.0mm.
Implant Diameter 4.0mm.
Implant Length: 6.0mm,8.0mm,9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Platform to Abutment Connection: Morse Taper 11 dag. Taper Diameter 2.8mm. Internal Double Hexagon.
aqua (small). Internal Thread-M1.6
Sizes: Implant Diameter 3.5mm.
Implant Length: 8.0mm,9.0mm,11.0mm,13.0mm,15.0mm.
Implant Diameter 4.0mm.
Implant Length: 6.0mm,8.0mm,9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implants with Compatible Platforms
