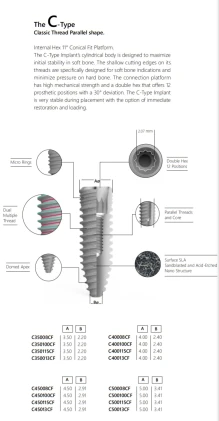

Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex, internal dodecagon

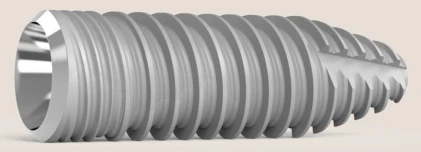

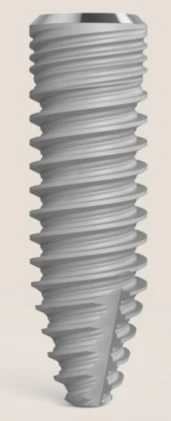

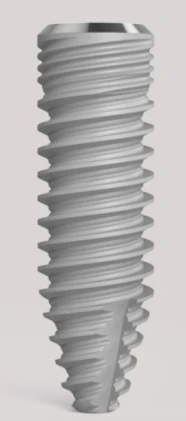

Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow
Implant Cervical Features
polished surface

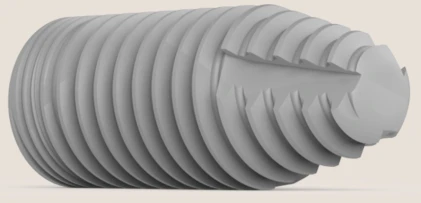

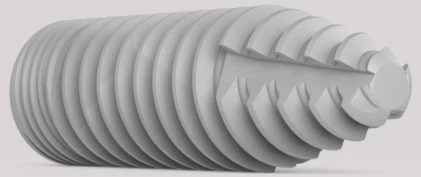

Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Platform to Abutment Connection: Morse Taper 22 dag. Taper Diameter 2.8mm. Dodecagon Width 2.07mm.

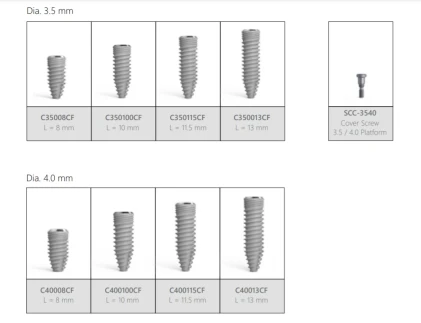

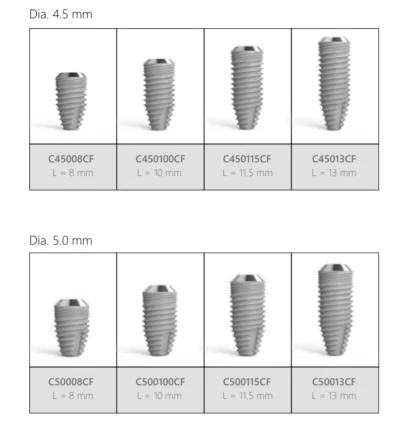

Sizes:
Implant Diameter: 3.5mm, 4.0mm, 4.5mm, 5.0mm.
Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm.
