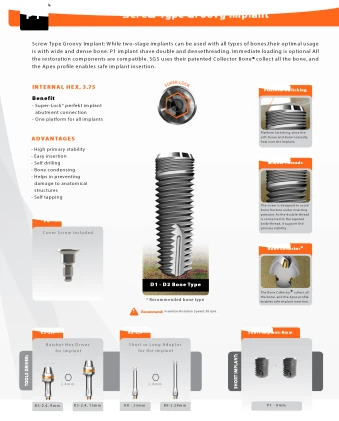

Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
SLA+CaP coating
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant to Abutment Connection: Internal Hexagon. Hexagon Width-2.4mm. Platform Diameter-3.75mm.

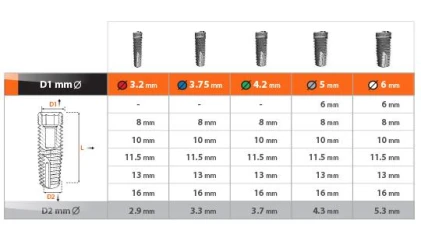

Sizes:
Implant Diameter:3.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:6.0mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Sizes:
Implant Diameter:3.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:6.0mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
