Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
SLA+CaP coating
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant to Abutment Connection: Internal Hexagon. Hexagon Width-2.4mm. Platform Diameter-3.75mm.

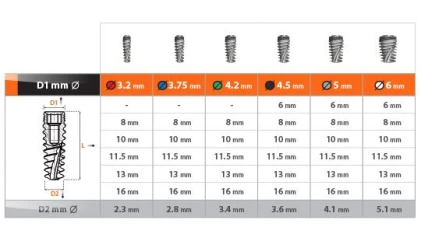

Sizes:
Implant Diameter:3.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.5mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:6.0mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Sizes:
Implant Diameter:3.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.5mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:6.0mm. Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
