Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
sandblast, acid etching
Implant Body Thread: Double Thread.
Platform to Abutment Connection: Internal taper 11.5 deg. Socket Diameter 2.5mm.
Internal Thread 1.8mm. 4 Platform Slots.

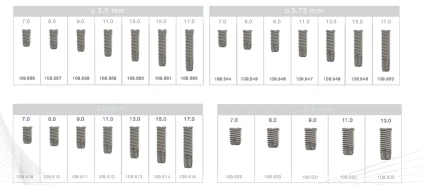

Sizes: Implant Diameter: 3.5mm. Implant Length:7.0mm,8.0mm,9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter: 3.75mm. Implant Length:7.0mm,8.0mm,9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter: 4.0mm. Implant Length:7.0mm,8.0mm,9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter: 5.0mm. Implant Length:7.0mm,8.0mm,9.0mm,11.0mm,13.0mm.
2011: Index Implant- Internal Hexagon. No Platform Slots.
Platform to Abutment Connection: Internal taper 11.5 deg. Socket Diameter 2.5mm.
Internal Thread 1.8mm. 4 Platform Slots.
Sizes: Implant Diameter: 3.5mm. Implant Length:7.0mm,8.0mm,9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter: 3.75mm. Implant Length:7.0mm,8.0mm,9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter: 4.0mm. Implant Length:7.0mm,8.0mm,9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter: 5.0mm. Implant Length:7.0mm,8.0mm,9.0mm,11.0mm,13.0mm.
2011: Index Implant- Internal Hexagon. No Platform Slots.
