Abutment Connection
internal
Abutment Connection Type
internal morse taper
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Thread: Double Thread.
Platform to Abutment Connection: Internal taper 11.5 deg. Socket Diameter 2.5mm.
Internal Thread 1.8mm. 4 Platform Slots.

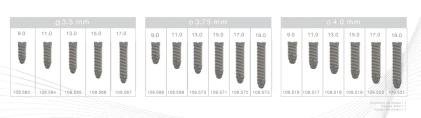

Sizes: Implant Diameter: 3.5mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter: 3.75mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm,17.0mm,19.0mm.
Implant Diameter: 4.0mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm,17.0mm,19.0mm.
Platform to Abutment Connection: Internal taper 11.5 deg. Socket Diameter 2.5mm.
Internal Thread 1.8mm. 4 Platform Slots.
Sizes: Implant Diameter: 3.5mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter: 3.75mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm,17.0mm,19.0mm.
Implant Diameter: 4.0mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm,17.0mm,19.0mm.
Implants with Compatible Platforms
