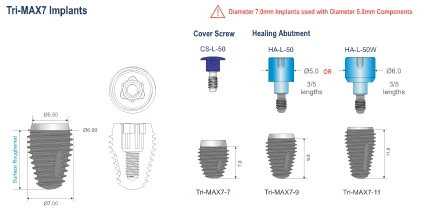

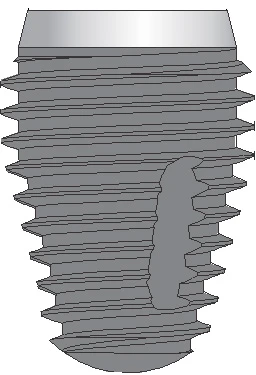

Tri-Max 7 (5.0)

Tri-Max 7 (5.0) - 1
Tri-Max 7 (5.0) - 2
Tri-Max 7 (5.0) - 3
Tri-Max 7 (5.0) - 4
Tri-Max 7 (5.0) - 5
Tri-Max 7 (5.0) - 6
Tri-Max 7 (5.0) - 7
-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
internal
Abutment Connection Type
internal tri lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast
Implant Material
commercially pure titanium (grade 4)

Platform to Abutment Connection: Internal Tri-lobe with Internal Hexagon Below the Tri-lobe for the Mount.
Platform with Beveled Edge.

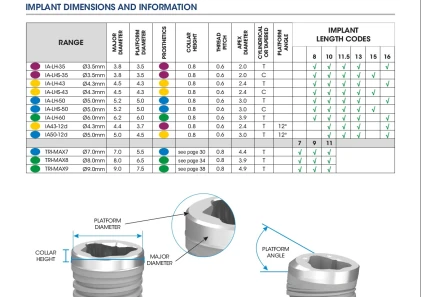

Sizes:
Platform Diameter:5.5mm. Implant Diameter:7.0mm. Implant Length:7.0mm,9.0mm,11.0mm.
