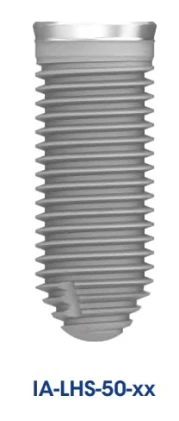

Tri-Nex IA-LHS-50

Tri-Nex IA-LHS-50 - 1
Tri-Nex IA-LHS-50 - 2
Tri-Nex IA-LHS-50 - 3
Tri-Nex IA-LHS-50 - 4
Tri-Nex IA-LHS-50 - 5
-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
internal
Abutment Connection Type
internal tri lobe
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Material
commercially pure titanium (grade 4)

Implant Cervical Features: 0.8mm or 0.6mm Polished.
Platform to Abutment Connection: Internal Tri-lobe with Internal Hexagon Below the Tri-lobe for the Mount.

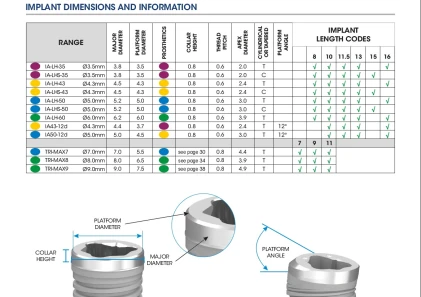

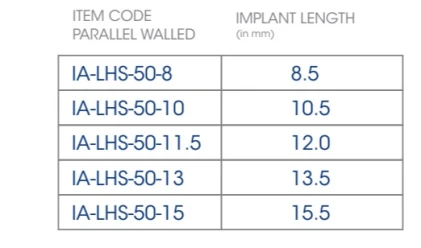

Sizes: Platform Diameter:5.0mm. Implant Diameter:5.2mm. Length:8.5mm,10.5mm,11.5mm,13.5mm,15.5mm.
