Tri-Nex Co-Axis IA50-12d (4.3)

Tri-Nex Co-Axis IA50-12d (4.3) - 1
Tri-Nex Co-Axis IA50-12d (4.3) - 2
Tri-Nex Co-Axis IA50-12d (4.3) - 3
Tri-Nex Co-Axis IA50-12d (4.3) - 4
Tri-Nex Co-Axis IA50-12d (4.3) - 5
Tri-Nex Co-Axis IA50-12d (4.3) - 6
Tri-Nex Co-Axis IA50-12d (4.3) - 7
-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
internal
Abutment Connection Type
internal tri lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
angled
Implant Apical Shape
domed apex

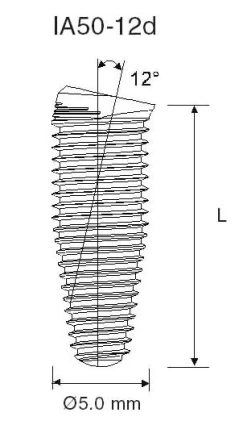

Implant Cervical Shape: 12 degree. Angled Correction.
Platform to Abutment Connection: Internal Tri-lobe. Internal Hexagon for the Mount.
Platform Diameter: 4.3mm.

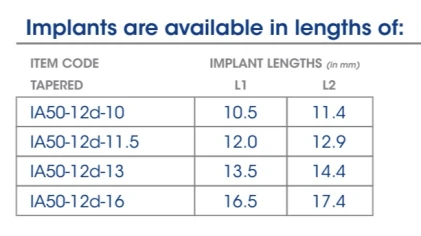

Sizes: Implant Diameter:5.0mm. Implant Length:10.5mm,12.0mm,13.5mm,16.5mm.
