Tri-Nex IA-L-43

Tri-Nex IA-L-43 - 1
Tri-Nex IA-L-43 - 2
Tri-Nex IA-L-43 - 3
Tri-Nex IA-L-43 - 4
Tri-Nex IA-L-43 - 5
Tri-Nex IA-L-43 - 6
Tri-Nex IA-L-43 - 7
Tri-Nex IA-L-43 - 8
Tri-Nex IA-L-43 - 9
-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
internal
Abutment Connection Type
internal tri lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
square, V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Material
commercially pure titanium (grade 4)

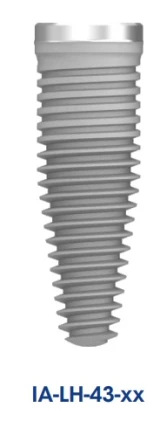

Implant Cervical Features: 1.5mm Polished. Implant IA-LH-43: 0.8mm or 0.6mm Polished.
Platform to Abutment Connection: Internal Tri-lobe with Internal Hexagon Below the Tri-lobe for the Mount.
Platform with Beveled Edge.

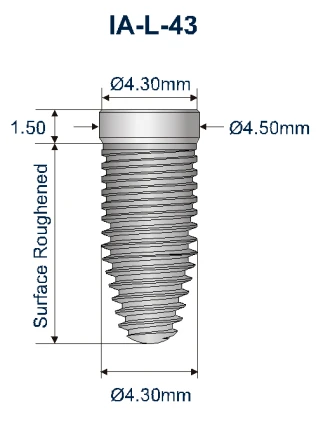

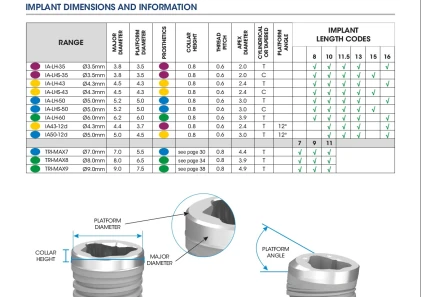

Sizes: Platform Diameter:4.3mm. Implant Diameter:4.5mm. Length:8.5mm,10.5mm,11.5mm,13.5mm,16.5mm.
