Abutment Connection
internal
Abutment Connection Type
internal hex

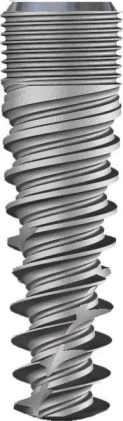

Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, narrow
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
blasted with hydroxylapatite, SBM (Soluble Blast Media)
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Cervical Features: Horizontal Grooves. Micro Threads.
for Implants Diameter 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm- 0.4mm Polished Neck.
Implant Body Thread: Double Thread.
Platform to Abutment Connection: Internal Hexagon. Platform Diameter 3.5mm.
Internal Thread 1-72 UNF.
Sizes:
Implant Diameter:3.25mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.75mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.

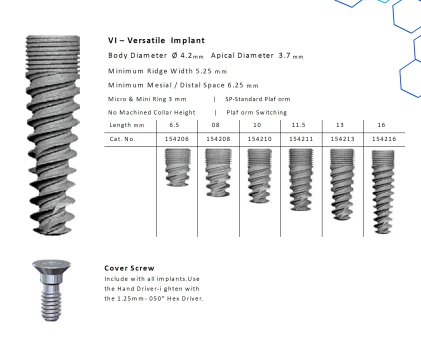

Implant Diameter:4.2mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.7mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.5mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.

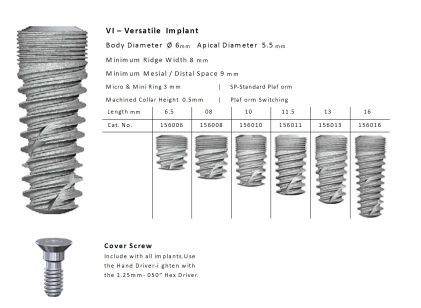

Implant Diameter:6.0mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:6.5mm.
Implant Length:5.5mm,6.0mm,6.5mm,8.0mm.
Implant Diameter:7.0mm.
Implant Length:5.0mm,6.0mm,6.5mm,8.0mm.
for Implants Diameter 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm- 0.4mm Polished Neck.
Implant Body Thread: Double Thread.
Platform to Abutment Connection: Internal Hexagon. Platform Diameter 3.5mm.
Internal Thread 1-72 UNF.
Sizes:
Implant Diameter:3.25mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.75mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.7mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.5mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:6.0mm.
Implant Length:6.5mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:6.5mm.
Implant Length:5.5mm,6.0mm,6.5mm,8.0mm.
Implant Diameter:7.0mm.
Implant Length:5.0mm,6.0mm,6.5mm,8.0mm.
