Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
sandblast, acid etching

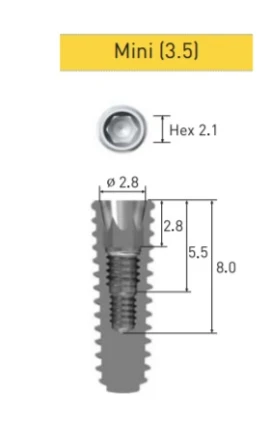

Platform to Abutment Connection: Internal Taper 11 dag. Taper Diameter 2.8mm. Taper Depth 2.8mm. Anti Rotation Internal Hexagon. Hexagon Diameter 2.1mm. Bore Thread M20/1.6.
Sizes:

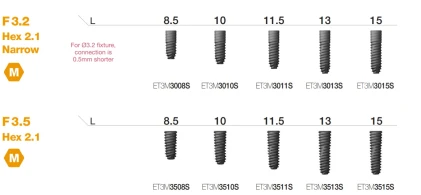

Implant Diameter 3.5mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
