Abutment Connection
internal
Abutment Connection Type
internal hex, internal morse taper
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
blasted with hydroxylapatite, TPO (Titanium Porous Oxide) anodic oxidation
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: Non Polished, Micro threads 3.5mm.

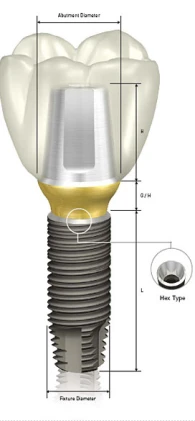

Platform to Abutment Connection: Internal Taper 11 dag. Taper Diameter 2.8mm. Anti Rotation Internal Hexagon. Hexagon Diameter 2.1mm. Bore Thread M20/1.6. Platform Diameter 3.5mm.

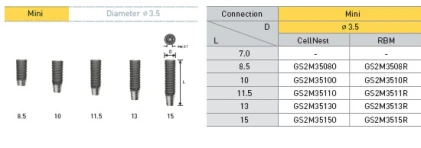

Sizes: Implant Diameter 3.5mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Platform to Abutment Connection: Internal Taper 11 dag. Taper Diameter 2.8mm. Anti Rotation Internal Hexagon. Hexagon Diameter 2.1mm. Bore Thread M20/1.6. Platform Diameter 3.5mm.
Sizes: Implant Diameter 3.5mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implants with Compatible Platforms
