Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
cylinder, tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped, square
Implant Cervical Shape
narrow
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
sandblast, acid etching
Implant Material
titanium alloy grade 5 (Ti6Al4V)

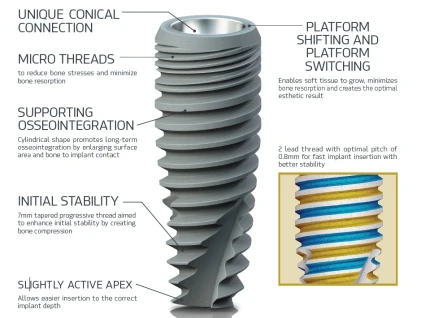

Implant Body Thread: Double lead thread. Thread pitch 0.8mm.

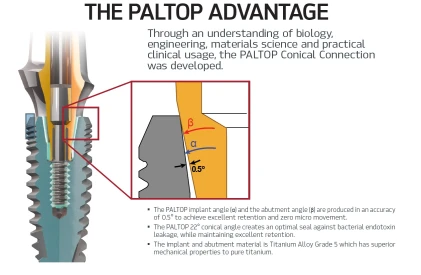

Platform to Abutment Connection: Internal Morse Taper 11 dag. Anti Rotation Internal Hexagon. Hexagon width 2.1mm. Platform Diameter 4.2mm.

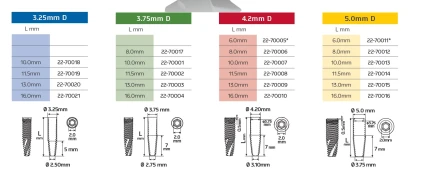

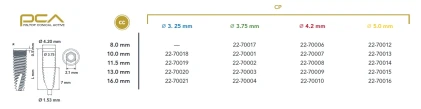

Sizes:
Implant Diameter: 3.25mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter: 3.75mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter: 4.2mm, 5.0mm.
Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
