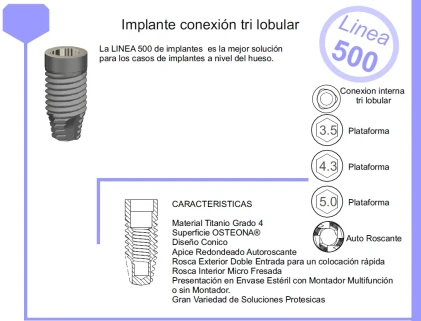

Linea 500 NP (3.5)

Linea 500 NP (3.5) - 1
Linea 500 NP (3.5) - 2
Linea 500 NP (3.5) - 3
-
Manufacturer:
Site: New Implant
Country: Argentina
Products: New Implant
Abutment Connection
internal
Abutment Connection Type
internal tri lobe
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, narrow
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
acid etching, sandblast
Implant Material
commercially pure titanium (grade 4)

Platform to Abutment Connection: Internal Tri Lobe. Internal Thread: 1/72.

Platform Diameter: 3.5mm.

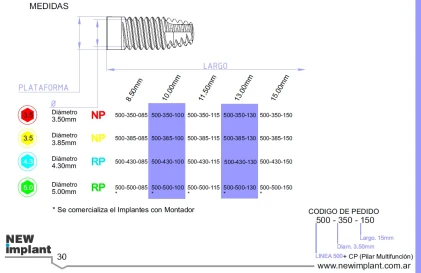

Sizes:

Implant Diameter: 3.5mm, 3.85mm.

Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
