Tri-Nex IA-L-35

Tri-Nex IA-L-35 - 1
Tri-Nex IA-L-35 - 2
Tri-Nex IA-L-35 - 3
Tri-Nex IA-L-35 - 4
Tri-Nex IA-L-35 - 5
-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
internal
Abutment Connection Type
internal tri lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped, square
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Material
commercially pure titanium (grade 4)

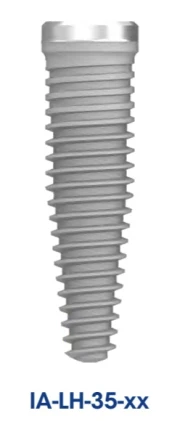

Implant Cervical Features: 1.5mm Polished. Implant IA-LH-35: 0.8mm or 0.6mm Polished.
Platform to Abutment Connection: Internal Tri-lobe with Internal Hexagon Below the Tri-lobe for the Mount.
Platform with Beveled Edge.

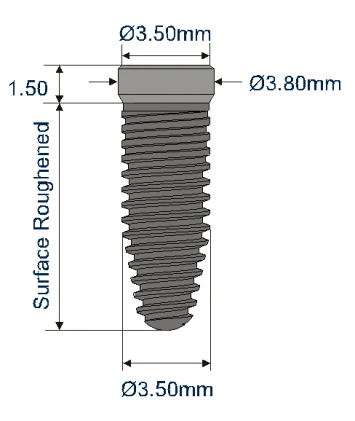

Sizes: Platform Diameter:3.5mm. Implant Diameter:3.8mm. Length:8.5mm,10.5mm,12.0mm,13.5mm,16.5mm.
