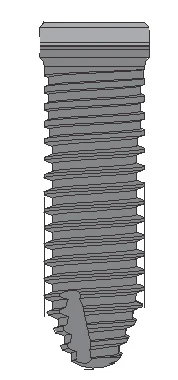

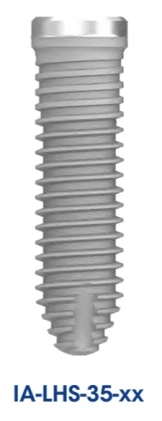

Tri-Nex IA-LHS-35

Tri-Nex IA-LHS-35 - 1
Tri-Nex IA-LHS-35 - 2
Tri-Nex IA-LHS-35 - 3
Tri-Nex IA-LHS-35 - 4
Tri-Nex IA-LHS-35 - 5
-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
internal
Abutment Connection Type
internal tri lobe
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
square, V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: 0.8mm Polished.
Platform to Abutment Connection: Internal Tri-lobe with Internal Hexagon Below the Tri-lobe for the Mount.
Platform with Beveled Edge.

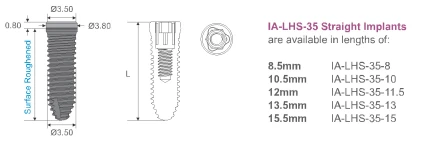

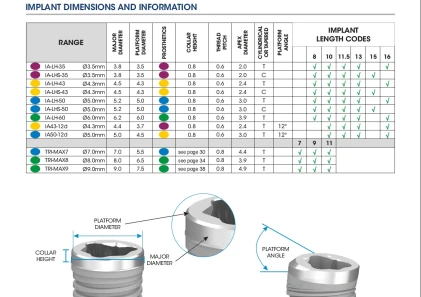

Sizes:
Platform Diameter:3.5mm. Implant Diameter:3.8mm.
Implant Length:8.5mm,10.5mm,12.0mm,13.5mm,15.5mm.
