Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Platform Color
yellow
Implant Body Surface
HA (hydroxyapatite), SBM (Soluble Blast Media)
Implant Apical Features: 2 Grooves.

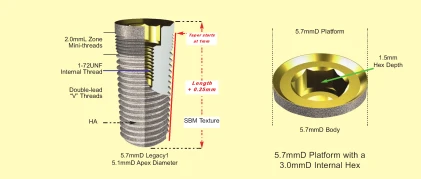

Implant Threads: Cervical Mini Threads:4 Leads. 1.2mm pitch. Body Threads: 2 Leads 1.2mm pitch.
Implant to Abutment Connection: Internal Hexagon. Platform Diameter-5.7mm.
Hexagon Depth-1.5mm. Hexagon Width-3.0mm.
Internal Thread-1-72UNF.
Internal Bevel.
Sizes: Implant Diameter: 5.7mm. Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Threads: Cervical Mini Threads:4 Leads. 1.2mm pitch. Body Threads: 2 Leads 1.2mm pitch.
Implant to Abutment Connection: Internal Hexagon. Platform Diameter-5.7mm.
Hexagon Depth-1.5mm. Hexagon Width-3.0mm.
Internal Thread-1-72UNF.
Internal Bevel.
Sizes: Implant Diameter: 5.7mm. Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
Titan implants INC.
