Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Platform Color
yellow
Implant Body Surface
SBM (Soluble Blast Media), HA (hydroxyapatite)
Implant Material
titanium alloy grade 5 (Ti6Al4V)

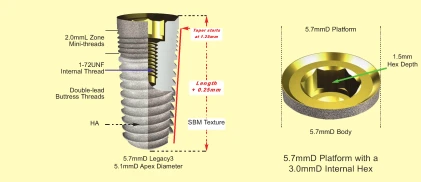

Implant Cervical Features: Mini Thread.
Implant to Abutment Connection: Internal Hexagon. Platform Diameter-5.7mm.
Hexagon Depth-1.5mm. Hexagon Width-3.0mm.
Internal Thread-1-72UNF.
Internal Bevel.
Sizes: Implant Diameter:5.7mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant to Abutment Connection: Internal Hexagon. Platform Diameter-5.7mm.
Hexagon Depth-1.5mm. Hexagon Width-3.0mm.
Internal Thread-1-72UNF.
Internal Bevel.
Sizes: Implant Diameter:5.7mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
Titan implants INC.
