Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved, round hole
Implant Apical Shape
domed apex
Implant Body Surface

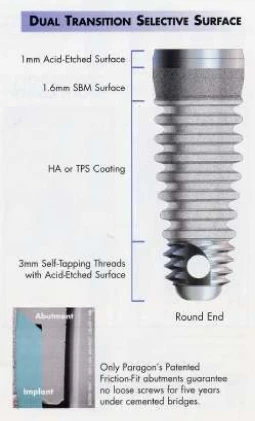

HA (hydroxyapatite), SBM (Soluble Blast Media), acid etching, TPS (Titanium Plasma Sprayed)
Implant Cervical Features: Acid Etched, Height-1.0mm.

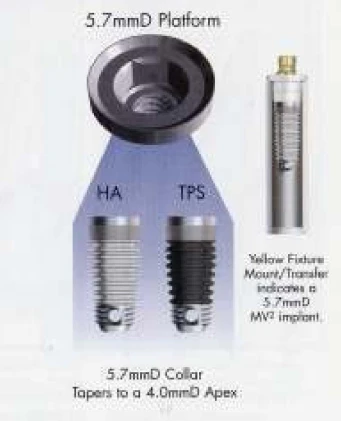

Platform to Abutment Connection: Internal Hexagon. Hexagon Diameter-3.0mm. Internal Thread-1-72 UNF.
Platform Diameter-5.7mm.
Sizes: Implant Diameter:5.7mm. Implant Length:8.0mm,10.0mm,13.0mm,16.0mm.
Paragon (Core-Vent) Acquired by Zimmer Dental.
Implants with Compatible Platforms
Titan implants INC.
