Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow
Implant Cervical Features
polished surface
Implant Apical Features
oblong hole
Implant Apical Shape
domed apex
Implant Body Surface
HA (hydroxyapatite), blasted with hydroxylapatite

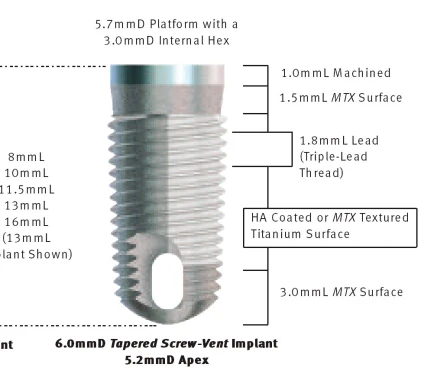

Implant Cervical Features:
Model TSV-MTX and Model TSV-H: 1.0mm Height Machined and below it 1.5mm Height MTX Surface.
Model TSVM: 0.5mm Height Machined and below it 1.8mm Height MTX Microgrooves Surface.
Model TSVT: 1.8mm Height MTX Microgrooves Surface.
Implant Apical Features: 3.0mm MTX Surface.
Implant Body Thread: Triple-Lead Thread. 1.8mm pitch. Thread Depth 0.35mm.
Sizes:Implant Diameter 6.0mm. Platform Diameter: 5.7mm. Internal Hexagon Diameter: 3.0mm. Depth: 1.5mm. 44 deg. Bevel with Ledge. 1-72 UNF Bore.
Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Model TSV-MTX and Model TSV-H: 1.0mm Height Machined and below it 1.5mm Height MTX Surface.
Model TSVM: 0.5mm Height Machined and below it 1.8mm Height MTX Microgrooves Surface.
Model TSVT: 1.8mm Height MTX Microgrooves Surface.
Implant Apical Features: 3.0mm MTX Surface.
Implant Body Thread: Triple-Lead Thread. 1.8mm pitch. Thread Depth 0.35mm.
Sizes:Implant Diameter 6.0mm. Platform Diameter: 5.7mm. Internal Hexagon Diameter: 3.0mm. Depth: 1.5mm. 44 deg. Bevel with Ledge. 1-72 UNF Bore.
Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
