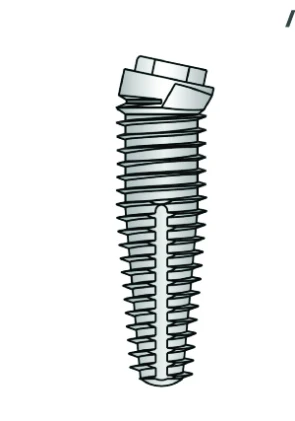

Co-Axis IBT12d (4.1)

Co-Axis IBT12d (4.1) - 1
Co-Axis IBT12d (4.1) - 2
Co-Axis IBT12d (4.1) - 3
Co-Axis IBT12d (4.1) - 4
Co-Axis IBT12d (4.1) - 5
-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
angled
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Material
commercially pure titanium (grade 4)

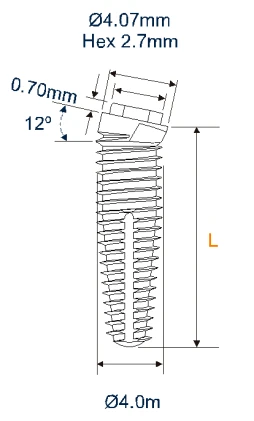

Implant Body Shape: 3.5mm of the upper part-Cylinder. The lower part-Taper.
Implant Body Threads: V Shape. 0.6mm pitch.

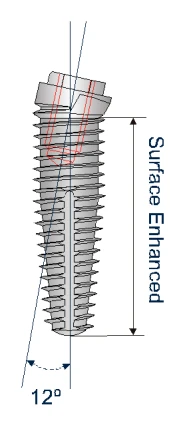

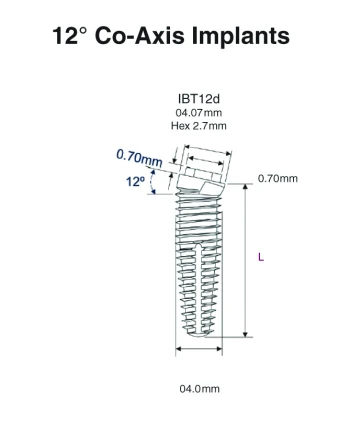

Implant Cervical Shape: 12 deg. Angled Correction.
Platform to Abutment Connection: External Hexagon. Hexagon Diameter:2.7mm. Hexagon Height:0.7mm.
Platform Diameter:4.07mm.
Sizes: Implant Diameter:4.0mm. Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm,18.0mm.
