Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)
Implant Apical Features: grooves (3).
Implant Cervical Features: polished 1.0mm.

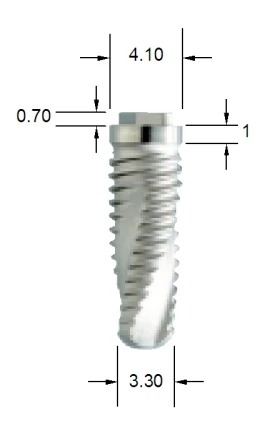

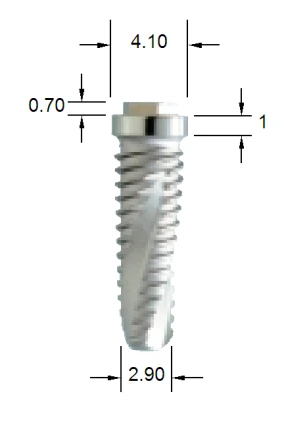

Platform to Abutment Connection: External Hex. Hex Width:2.7mm. Hex Height: 0.7mm.
Sizes: Platform Diameter:4.1mm. Implant Diameter: 3.75mm,4.2mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
