Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
wider than body
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
sandblast, acid etching
Implant Material
commercially pure titanium (grade 2)

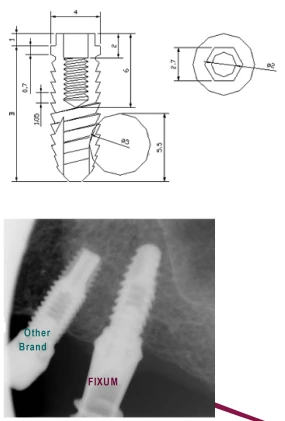

Implant Body Thread: Pitch-1.05mm.
Platform to Abutment Connection: External Hexagon. Hexagon Width-2.7mm. Hexagon Height-0.7mm. Internal Bore-2.0mm. Platform Diameter-4.1mm.
Sizes: Implant Diameter:3.3mm. Implant Length:10.0mm.
Implant Diameter:3.75mm. Implant Length:10.0mm,11.5mm,13.0mm.
Implant Diameter:4.0mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm.
