IMZ Hex Head (4.1)

IMZ Hex Head (4.1) - 1
IMZ Hex Head (4.1) - 2
IMZ Hex Head (4.1) - 3
IMZ Hex Head (4.1) - 4
IMZ Hex Head (4.1) - 5
IMZ Hex Head (4.1) - 6
-
Manufacturer:
Country: United States
Abutment Connection
external
Abutment Connection Type
external hex

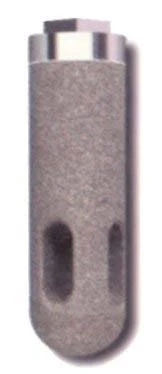

Implant Body Shape
cylinder
Implant Body Features
non-threaded
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
polished surface
Implant Apical Features
oblong hole, round hole
Implant Apical Shape
domed apex
Implant Body Surface
TPS (Titanium Plasma Sprayed), HA (hydroxyapatite)

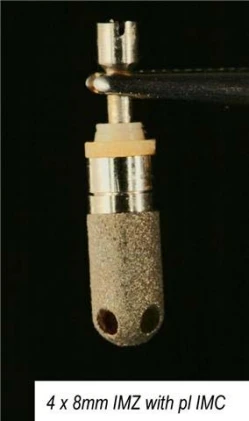

Implant Body Features: Shock Absorbing Intermobile Element.

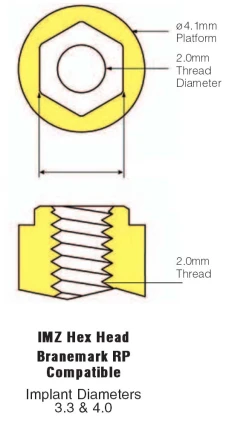

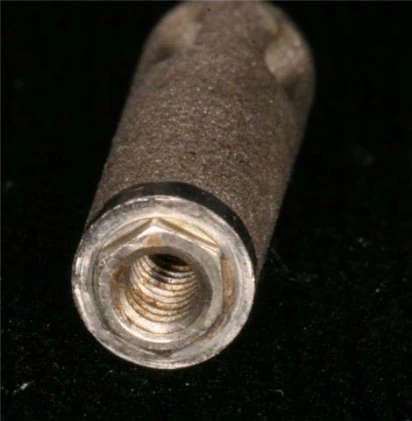

Platform to Abutment Connection: External Hexagon. Hexagon Height-0.7mm. Hexagon Width-2.7mm.
Internal Thread-2.0mm. Platform Diameter-4.1mm.
Sizes: Implant Diameter:3.3mm,4.0mm.
Implant Material: Pure Titanium.
Product History: First Introduced-1991.
Interpore-US distributor for IMZ.
Nobel Biocare-Acquired IMZ.
Attachments International-Acquired all IMZ components.
