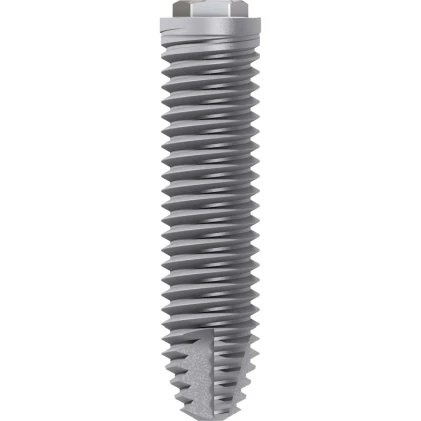

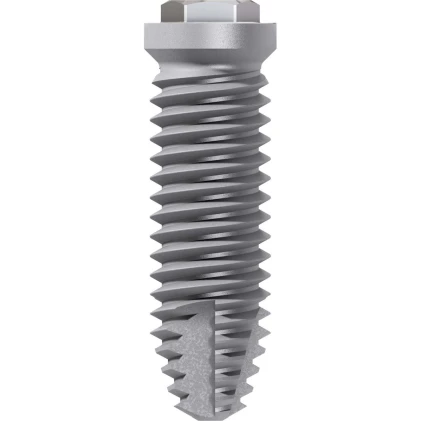

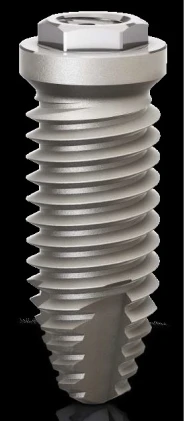

Titamax HE Smart EX (4.1)

Titamax HE Smart EX (4.1) - 1
Titamax HE Smart EX (4.1) - 2
Titamax HE Smart EX (4.1) - 3
Titamax HE Smart EX (4.1) - 4
-
Manufacturer:
Site: Neodent
Country: Brazil
Products: Neodent
Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)

Implant Body Thread: Double Lead Thread Design

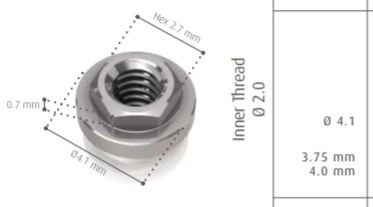

Platform to Abutment Connection: External Hexagon. Hexagon width:2.7mm. Hexagon Height: 0.7mm. Internal Thread: 2.0mm

Sizes: Platform Diameter: 4.1mm.

Implant Diameter: 3.75mm.

Implant Length: 9.0mm,11.0mm,13.0mm,15.0mm, 17.0mm.

Implant Diameter: 4.0mm

Implant Length: 9.0mm, 11.0mm,13.0mm,15.0mm, 17.0mm
