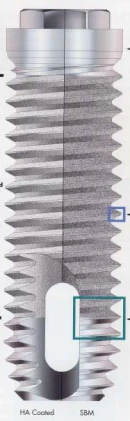

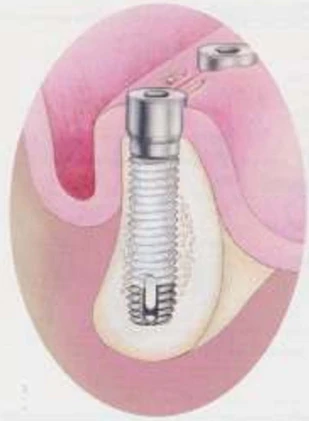

Taper-Lock Screw (4.1) (Paragon)

Taper-Lock Screw (4.1) (Paragon) - 1
Taper-Lock Screw (4.1) (Paragon) - 2
Taper-Lock Screw (4.1) (Paragon) - 3
Taper-Lock Screw (4.1) (Paragon) - 4
-
Manufacturer:
Country: United States
Products: Zimmer Dental
Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
unpolished surface
Implant Apical Features
apical hole, grooved, oblong hole
Implant Apical Shape
flat apex
Implant Body Surface
acid etching, SBM (Soluble Blast Media), HA (hydroxyapatite)
Platform to Abutment Connection: External Hexagon. Hexagon Height-0.7mm. Hexagon Width-2.7mm. Hexagon Taper-1.5 deg.
Platform Diameter-4.1mm.
Sizes: Implant Diameter:3.3mm,4.0mm,4.7mm. Implant Length:8.0mm,10.0mm,13.0mm,16.0mm.
Paragon (Core-Vent) Acquired by Zimmer Dental.
